SKU:37269657

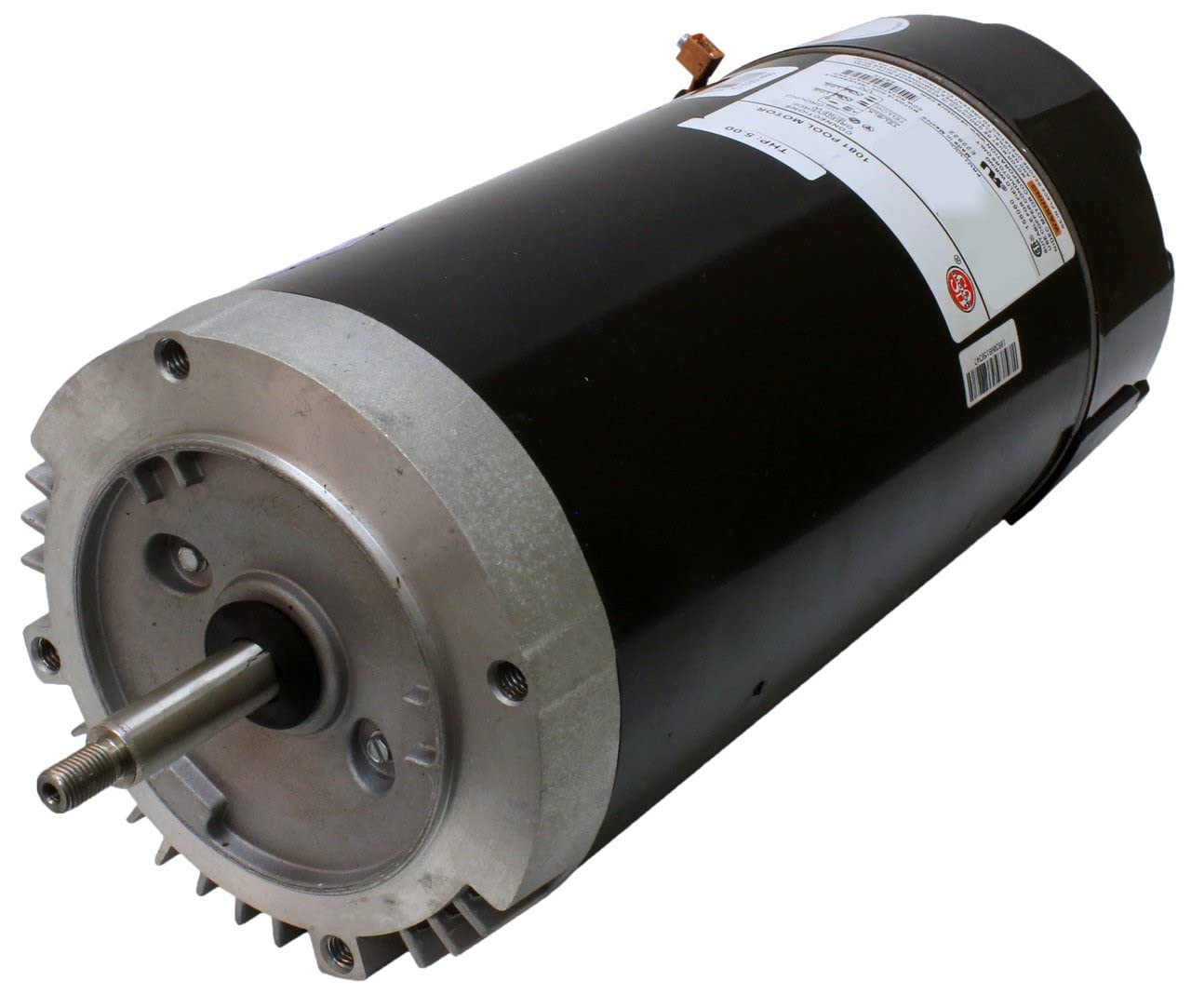

Swimming pool pump motor. Commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. This is a High Service factor motor. Amps are stated based on the full service factor. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center, measured across the shaft. Wiring diagram on motor name plate. 1 year manufacture warranty. Century Equivalent B129
1 HP 3450 RPM 56J, 14.0/7.0 amps, 115/230V 60hz.
Automatic Overload Protection - Service Factor 1.40
Non-Reversible - CCW Rotation facing the shaft
C-Face Mount, Round Body-no base
56-J Frame; 5/8" diameter threaded stainless steel shaft
I spent 90% of my time researching and finding the correct motor model. The old motor was "repaired" by a local shop which basically spray painted the motor black. So after 1 month, I decided to purchase a replacement. I was able to get enough info off of the painted over name plate to start my research and identified the correct motor. When received...I connected the motor to the filter system of the pool...and turned it on. Runs whisper quiet. Very pleased with the initial purchase and ease of installation. Now monitoring it for how long it will last. I also did buy the protection for the motor given the cost to buy the motor.
